Underground Tanks

FEATURES:

Minimal installation depth. Up to 80% less digging
for the same volume tank.

Shallow excavation makes it suitable for rocky
ground and locations with high groundwater.

Its unique design means a smaller foot print
compared to competitor tanks with the same volume.

Smaller angle of repose.

Unique rotation moulding process resulting in
seamless internal joins, for extra strength.

Can also be used as an under-deck tank, above
ground or semi-submerged.

12 year tank warranty.

FEATURES:

50mm female thread – suitable for an electrical
cable with a standard electrical plug fitted.

32mm female thread – suitable for water outlet

25mm female thread – suitable for water inlet for
top up system or air vent between inter connected tanks.

100mm spinweld fitting (x 2) – used for
rainwater inlet & tank overflow.

Lockable Lid

2 x child safety bars

100mm Barrel filter

2 x flat catch plates for lockable lid

10 year tank warranty.

FEATURES:

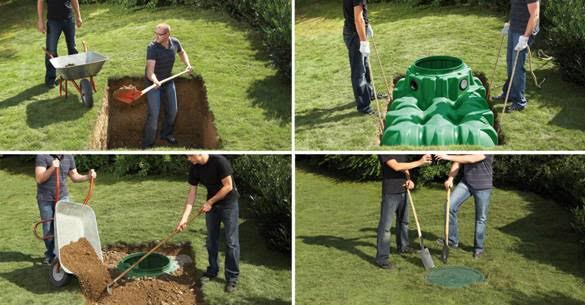

Safe to install – shallow excavation depth
means no need to work at depth.

Fully adjustable riser – simply install the tank
and cut the riser off at the required height

Modular design allows tanks to be easily joined
for additional storage

Rectangular footprint of 3.5m x 2.8m

Strong composite construction – designed and
engineered for residential traffic

Load vehicle traffic up to 2,500kg

Strong alloy lid

Child-resistant fasteners secure the lid; plus
safety barrier built-in to riser

Flat pump recess in base allows for easy
installation of a submersible pump

10 year tank warranty.
